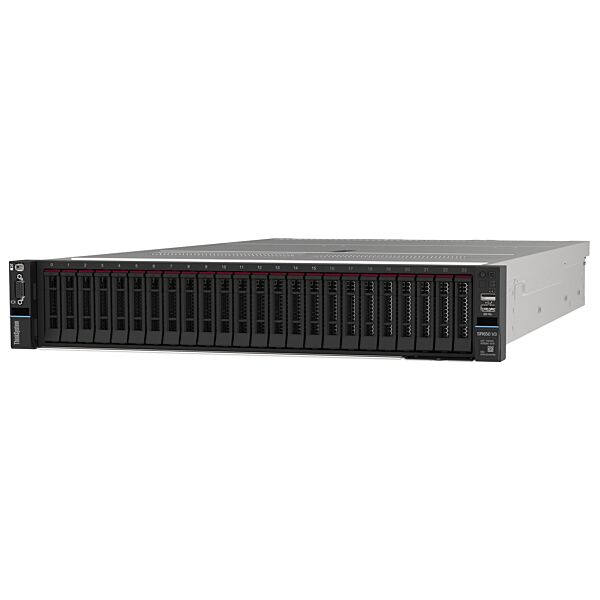

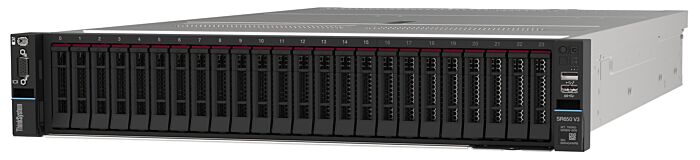

Lenovo ThinkSystem SR650 V3 Rack Server – Xeon Silver 4514Y, 32GB DDR5, 8x SFF Bay, 9350-8i RAID, 1100W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Hard Drives, Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.
The Lenovo ThinkSystem SR650 V3 Rack Server is an enterprise-grade 2U server featuring a powerful 16-core Intel® Xeon® Silver 4514Y processor, 32GB DDR5 5600MHz memory, enterprise RAID controller, and a high-efficiency 1100W Titanium PSU. Perfect for virtualisation, business applications, and other high-demand workloads.
High-core processor: 16-core Intel® Xeon® Silver 4514Y for excellent multitasking and parallel processing.
Next-gen RAM: 32GB DDR5 5600MHz for faster performance and efficiency.
Flexible storage: 8x SFF bays for SSD or SAS/SATA drives.
Data safety: 9350-8i RAID controller with 2GB cache.
Energy efficient: Titanium-rated 1100W PSU saves power costs.
Rapid deployment: Includes rail kit for tool-free rack installation.
Sustainable choice: CO₂ offset package included.
Proactive support: 3-year Premier warranty with 24/7, 4-hour onsite repair.
Base Configuration Details of 7D76A05ZEA
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | Intel® Xeon® Silver 4514Y – 16 processing cores at 2.0GHz for heavy multitasking and demanding applications. |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 16 |
| Memory Details | |
| Memory Installed | 32GB DDR5 TruDDR5 5600MHz RAM – super-fast and efficient, allowing more programs to run smoothly at the same time. |
| Memory Slots - Max Qty | 32 |
| Hard Drive Details | |
| Hard Drives Installed | None |
| Hard Drive Bays - Max Qty | 8 |
| Backplane | 8x 2.5" SFF bays – supports SSD or SAS/SATA enterprise drives. |
| Power Supply Details | |
| Power Supply | 1100W Titanium-rated hot-swap PSU – high efficiency and can be replaced without turning off the server. |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | ThinkSystem 9350-8i RAID Controller with 2GB cache – protects against data loss and speeds up drive performance. |
| Network | Integrated 1GbE LAN ports for immediate network connectivity. |
| Management | Lenovo XClarity Platinum – manage, monitor, and troubleshoot the server remotely. |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3Yr ProSupport and Next Business Day On-Site Service |
| Included with this Server | Toolless Slide Rail Kit v2 included, 5x high-performance fans |
Detailed Technical Specifications: Lenovo ThinkSystem SR650 Server (7X06A0P1EA)
Processor
Processor: Intel Xeon Silver 4208
Cores: 8
Threads: 16
Base Frequency: 2.1 GHz
Cache: 11 MB
Max CPUs: 2
Thermal Design Power (TDP): 85W
Memory
Installed Memory: 32GB (1 x 32GB) TruDDR4 2933 MHz RDIMM
Memory Speed: 2933 MT/s
Memory Type: DDR4 RDIMM, ECC
Maximum Memory Slots: 24 DIMM slots
Max Memory Capacity: Up to 7.5TB using 256GB DIMMs
Error-Correcting Code (ECC): Yes
Storage
Installed Hard Drives: None
Maximum Hard Drive Bays: 8 x 2.5" SAS/SATA hot-plug
Backplane: ThinkSystem SR550/SR650 2.5" SATA/SAS 8-Bay Backplane Kit
RAID Controller: ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter
Supported RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
Power Supply
Installed Power Supply: 1 x 750W (230V/115V) Platinum Hot-Swap Power Supply
Power Supply Type: Hot Swap, Fully Redundant
Max Power Supplies: 2
Networking
Network Controller: Onboard LOM slot for up to 4x 1GbE or 10GbE Ethernet ports
Ports:
Multiple network ports depending on installed adapters
Management and Security
Management Processor: ThinkSystem XClarity Controller Standard to Enterprise Upgrade
Management Features:
Comprehensive remote management
Health monitoring
Troubleshooting tools
Security Features:
Secure Boot
Trusted Platform Module (TPM) 2.0
Expansion Slots
PCIe Slots:
Multiple PCIe slots for additional expansion cards
Form Factor and Design
Chassis: 2U Rackmount
Dimensions (H x W x D): 8.73 cm x 43.4 cm x 61.8 cm (3.44 in x 17.09 in x 24.33 in)
Weight: 18 kg (39.68 lb)
Input/Output
USB Ports:
Front: 2 x USB 3.0 Type-A
Rear: 2 x USB 3.0 Type-A, 1 x USB 2.0 Type-A
Internal: 1 x USB 3.0 Type-A
Video Ports:
1 x VGA
Serial Ports:
1 x Serial port
Operating System and Software
Pre-Installed OS: None
Supported Operating Systems:
Windows Server
Various Linux distributions
VMware ESXi
Warranty and Support
Warranty: 3-year limited onsite service with 9x5/NBD
Coverage: Parts, Labor, and Onsite Support
Environmental Specifications
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Operating Humidity: 8% to 90% (non-condensing)
Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Non-Operating Humidity: 5% to 95% (non-condensing)
Certifications and Compliance
Certifications:
CE
FCC
UL
RoHS
CCC
Key Features
Scalability: Supports up to 24 DIMMs and 8 hot-plug SAS/SATA drives, allowing for future upgrades and expansion.
Efficiency: Equipped with a 750W Platinum power supply for high energy efficiency.
Reliability: Backed by a 3-year warranty, ensuring professional support and minimal downtime.
Management: ThinkSystem XClarity Controller for comprehensive management and monitoring capabilities.
These technical specifications provide a detailed overview of the Lenovo ThinkSystem SR650 Server, highlighting its capabilities, expandability, and suitability for various business applications. This server is an excellent choice for businesses looking to enhance their IT infrastructure with a reliable and powerful server solution.
| Estimated Shipping Weight | 50.000000 |
|---|---|
| Estimated Shipping Length | 100 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 15 |
| Operating System Installed | None |
