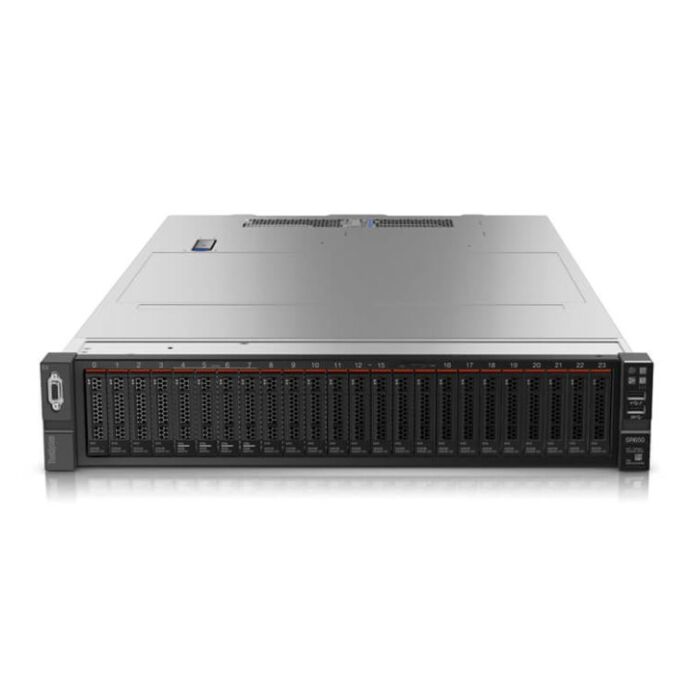

Lenovo ThinkSystem SR650 V3 Rack Server – Xeon Silver 4509Y, 32GB DDR5, 8x SFF Bay, 9350-8i RAID, 1100W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Hard Drives, Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.
Base Configuration Details of 7D76A05VEA
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | Intel® Xeon® Silver 4509Y – 8 powerful cores at 2.6GHz to handle multiple heavy tasks at once. |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 8 |
| Memory Details | |
| Memory Installed | 32GB DDR5 RAM – faster than older DDR4, so the server can run more programs without lag. |
| Memory Slots - Max Qty | 32 |
| Hard Drive Details | |
| Hard Drives Installed | None |
| Hard Drive Bays - Max Qty | 24 |
| Backplane | 8x 2.5" SFF (small form factor) drive bays |
| Power Supply Details | |
| Power Supply | 1100W Titanium-rated hot-swap PSU |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | ThinkSystem 9350-8i RAID Controller with 2GB cache |
| Network | 1x or 2x 1GbE RJ-45 ports (depending on motherboard config) for wired network connectivity. |
| Management | Lenovo XClarity Platinum – monitor, control, and update the server remotely. |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3Yr ProSupport and Next Business Day On-Site Service |
| Included with this Server | Toolless Slide Rail Kit v2 included, 5x high-performance fans – keeps the server cool under pressure. |
Detailed Technical Specifications: Lenovo ThinkSystem SR650 V2 Server (7Z73A06UEA)
Processor
Processor: Intel Xeon Silver 4309Y
Cores: 8
Threads: 16
Base Frequency: 2.8 GHz
Cache: 12 MB
Max CPUs: 2
Thermal Design Power (TDP): 105W
Memory
Installed Memory: 32GB (1 x 32GB) TruDDR4 3200 MHz RDIMM
Memory Speed: 3200 MT/s
Memory Type: DDR4 RDIMM, ECC
Maximum Memory Slots: 32 DIMM slots
Max Memory Capacity: Up to 8TB using 256GB DIMMs
Error-Correcting Code (ECC): Yes
Storage
Installed Hard Drives: None
Maximum Hard Drive Bays: 12 x 3.5" SAS/SATA hot-plug
Backplane: 1x ThinkSystem V2/V3 2U 12x3.5" SAS/SATA Backplane Option Kit
RAID Controller: Onboard SATA software RAID
Supported RAID Levels: RAID 0, 1, 5, 10
Power Supply
Installed Power Supply: 1 x 750W (230V/115V) Platinum Hot-Swap Power Supply
Power Supply Type: Hot Swap, Fully Redundant
Max Power Supplies: 2
Networking
Network Controller: Supports a variety of 2-port and 4-port adapters with 1GbE, 10GbE, and 25GbE network connectivity
Ports:
Multiple network ports depending on installed adapters
Management and Security
Management Processor: ThinkSystem XClarity Controller Standard to Enterprise Upgrade
Management Features:
Comprehensive remote management
Health monitoring
Troubleshooting tools
Security Features:
Secure Boot
Trusted Platform Module (TPM) 2.0
Expansion Slots
PCIe Slots:
Multiple PCIe slots for additional expansion cards
Form Factor and Design
Chassis: 2U Rackmount
Dimensions (H x W x D): 8.73 cm x 43.4 cm x 61.8 cm (3.44 in x 17.09 in x 24.33 in)
Weight: 18 kg (39.68 lb)
Input/Output
USB Ports:
Front: 2 x USB 3.0 Type-A
Rear: 2 x USB 3.0 Type-A, 1 x USB 2.0 Type-A
Internal: 1 x USB 3.0 Type-A
Video Ports:
1 x VGA
Serial Ports:
1 x Serial port
Operating System and Software
Pre-Installed OS: None
Supported Operating Systems:
Windows Server
Various Linux distributions
VMware ESXi
Warranty and Support
Warranty: 3-year limited onsite service with 9x5/NBD
Coverage: Parts, Labor, and Onsite Support
Environmental Specifications
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Operating Humidity: 8% to 90% (non-condensing)
Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Non-Operating Humidity: 5% to 95% (non-condensing)
Certifications and Compliance
Certifications:
CE
FCC
UL
RoHS
CCC
Key Features
Scalability: Supports up to 32 DIMMs and 12 hot-plug SAS/SATA drives, allowing for future upgrades and expansion.
Efficiency: Equipped with a 750W Platinum power supply for high energy efficiency.
Reliability: Backed by a 3-year warranty, ensuring professional support and minimal downtime.
Management: ThinkSystem XClarity Controller for comprehensive management and monitoring capabilities.
These technical specifications provide a detailed overview of the Lenovo ThinkSystem SR650 V2 Server, highlighting its capabilities, expandability, and suitability for various business applications. This server is an excellent choice for businesses looking to enhance their IT infrastructure with a reliable and powerful server solution.
| Estimated Shipping Weight | 50.000000 |
|---|---|
| Estimated Shipping Length | 100 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 20 |
