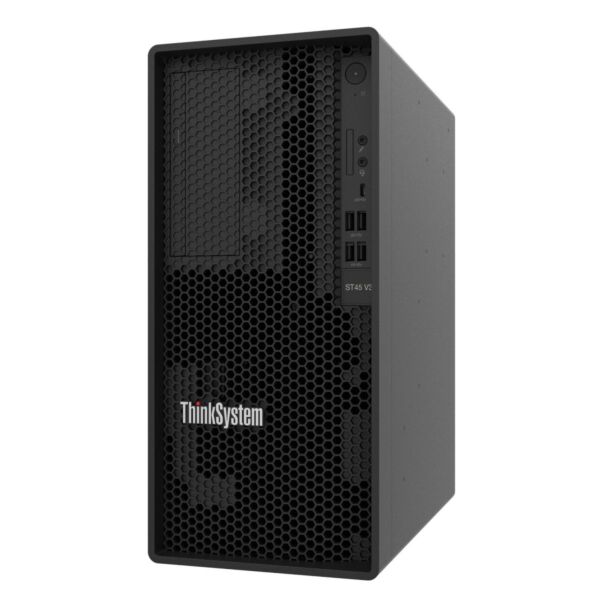

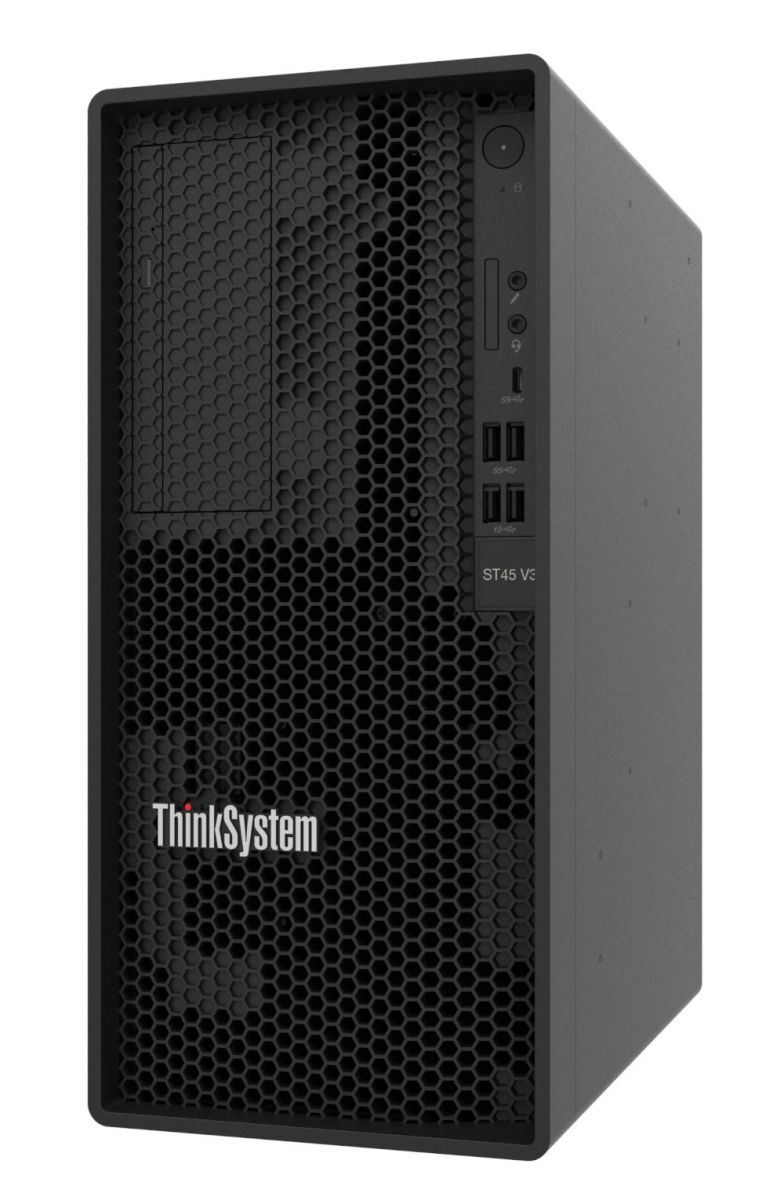

Lenovo ThinkSystem ST45 V3 Tower Server AMD EPYC 4124P 16GB DDR5 2TB SATA
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.
Base Configuration Details of 7DH5A00SEA
| Form Factor | |
|---|---|
| Form Factor | Tower |
| CPU Details | |
| CPU | AMD EPYC 4124P 4C/3.8GHz |
| CPU - Max Qty | 1 |
| Installed CPU Cores | 4 |
| Memory Details | |
| Memory Installed | 16GB TruDDR5 5600MHz ECC UDIMM |
| Memory Slots - Max Qty | 2 |
| Hard Drive Details | |
| Hard Drives Installed | 2x 1TB 3.5" SATA 7.2K HDD (Non-Hot Swap) |
| Hard Drive Bays - Max Qty | 3 |
| Backplane | 1x ThinkSystem ST45 V3 3rd 3.5" HDD Cage (HDD+HDD)(Standard) 1x ThinkSystem ST45 V3 2x 3.5 HDD Cage Kit(Standard) |
| Power Supply Details | |
| Power Supply | 500W Platinum ATX Power Supply (230V/115V auto-switching) |
| Power Supplies - Max Qty | 1 |
| Other Specifications | |
| Optical Drive Pre-Installed | None |
| Raid Controller | AMD PRO 665 (AHCI Mode, no RAID configured) |
| Network | One RJ-45 Gigabit Ethernet port |
| Management | Lenovo XClarity Provisioning Manager Lite |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
Model: Lenovo ThinkSystem ST45 V3
Chassis & Motherboard:
-
Chassis: ST45 V3 Base Chassis
-
Motherboard: ST45 V3 Mainboard with dTPM (WW)
Processor:
-
CPU: AMD EPYC 4124P
-
Cores/Threads: 4 cores, 8 threads
-
Base Frequency: 3.8 GHz
-
TDP: 65W
Memory:
-
Installed: 16GB TruDDR5 5600MHz ECC UDIMM (1Rx8)
-
Type: DDR5 ECC UDIMM
-
Slots: [Standard config – specify total slots if known]
Storage:
-
Controller: AMD PRO 665 (AHCI Mode, no RAID configured)
-
Drives Included: 2 x 1TB 3.5" SATA 7.2K 6Gbps (Non-Hot Swap, 512n)
-
Expansion:
-
3rd 3.5" HDD Cage (installed)
-
2x 3.5" HDD Cage Kit (installed)
-
[Add max drive support if needed]
-
Power & Cooling:
-
PSU: 500W Platinum ATX Power Supply (230V/115V auto-switching)
-
Fans: System Rear Fan Kit (installed)
Security:
-
TPM 2.0 module installed
-
dTPM (Discrete Trusted Platform Module) on mainboard
Connectivity:
-
DP to HDMI Dongle Kit v2 (included)
-
Power Cable: European 10A line C13 to CEE 7/7 (2.8m)
Other:
-
Operating System: Not installed (OS sold separately)
-
RAID: Not configured (AHCI Mode)
| Estimated Shipping Weight | 15.000000 |
|---|---|
| Estimated Shipping Length | 40 |
| Estimated Shipping Width | 25 |
| Estimated Shipping Height | 50 |
| Operating System Installed | None |
