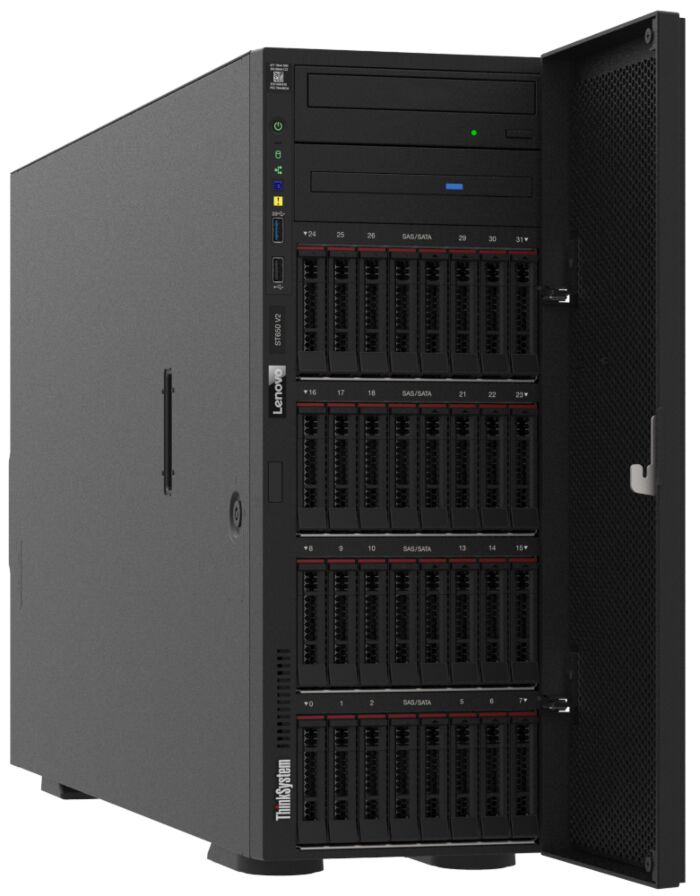

Lenovo Server ST650v2 - Intel Xeon S-4310 12C 2.1GHz - 32GB RAM - 8 BAY SFF - 750W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Hard Drives.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
Base Configuration Details of 7Z74A031EA
Form Factor | |
---|---|
Form Factor | Tower |
CPU Details | |
CPU | 1x ThinkSystem ST650 V2 Intel Xeon Silver 4310 12C 120W 2.1GHz Processor Option Kit w/o Fan(Standard) |
CPU - Max Qty | 2 |
Installed CPU Cores | 12 |
Memory Details | |
Memory Installed | 1x ThinkSystem 32GB TruDDR4 3200 MHz (2Rx4 1.2V) RDIMM(Standard) |
Memory Slots - Max Qty | 32 |
Hard Drive Details | |
Hard Drives Installed | None |
Hard Drive Bays - Max Qty | 8 |
Backplane | 1x ThinkSystem ST650 V2 2.5" SAS/SATA 8-Bay Backplane Kit(Standard) |
Power Supply Details | |
Power Supply | 1x ThinkSystem 750W 230V Titanium Hot-Swap Gen2 Power Supply v2(Standard) |
Power Supplies - Max Qty | 2 |
Other Specifications | |
Optical Drive Pre-Installed | Not Supplied |
Raid Controller | 1x ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter(Standard) |
Network | Two onboard 10GBASE-T Ethernet RJ45 ports based on a Broadcom BCM57416 controller. Additional dedicated Gigabit port for remote management via the XClarity Controller (XCC) management processor. |
Management | 1x ThinkSystem XClarity Controller Standard to Enterprise Upgrade(Standard) |
Warranty and Extras | |
Warranty | 3-year limited onsite service with 9x5/NBD |
Base
1x Enable selection of latest options and features where available. Previous versions are disabled. To be able to select the previous versions, select None.(Standard)
1x ThinkSystem ST650 V2 32x2.5" Chassis(Standard)
1x Operating mode selection for: "Efficiency - Favoring Performance Mode"(Standard)
Processors
1x ThinkSystem ST650 V2 Intel Xeon Silver 4310 12C 120W 2.1GHz Processor Option Kit w/o Fan(Standard)
Memory
1x ThinkSystem 32GB TruDDR4 3200 MHz (2Rx4 1.2V) RDIMM(Standard)
Storage
1x Select Storage devices - no configured RAID required(Standard)
1x ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter(Standard)
1x ThinkSystem ST650 V2 2.5" SAS/SATA 8-Bay Backplane Kit(Standard)
Power
1x ThinkSystem 750W 230V Titanium Hot-Swap Gen2 Power Supply v2(Standard)
1x European 10A line C13 to CEE 7/7 (2.8M)(Standard)
Others
3x ThinkSystem ST650 V2/V3 Standard Fan Kit(Standard)
1x ThinkSystem ST650 V2/V3 Chassis Intrusion Cable Kit(Standard)
1x ThinkSystem XClarity Controller Standard to Enterprise Upgrade(Standard)
1x Thinksystem ST650 V2 Planar(Standard)
Security
1x Enable TPM 2.0(Standard)
1x Disable IPMI-over-LAN(Standard)
Estimated Shipping Weight | 40.000000 |
---|---|
Estimated Shipping Length | 110 |
Estimated Shipping Width | 70 |
Estimated Shipping Height | 50 |
