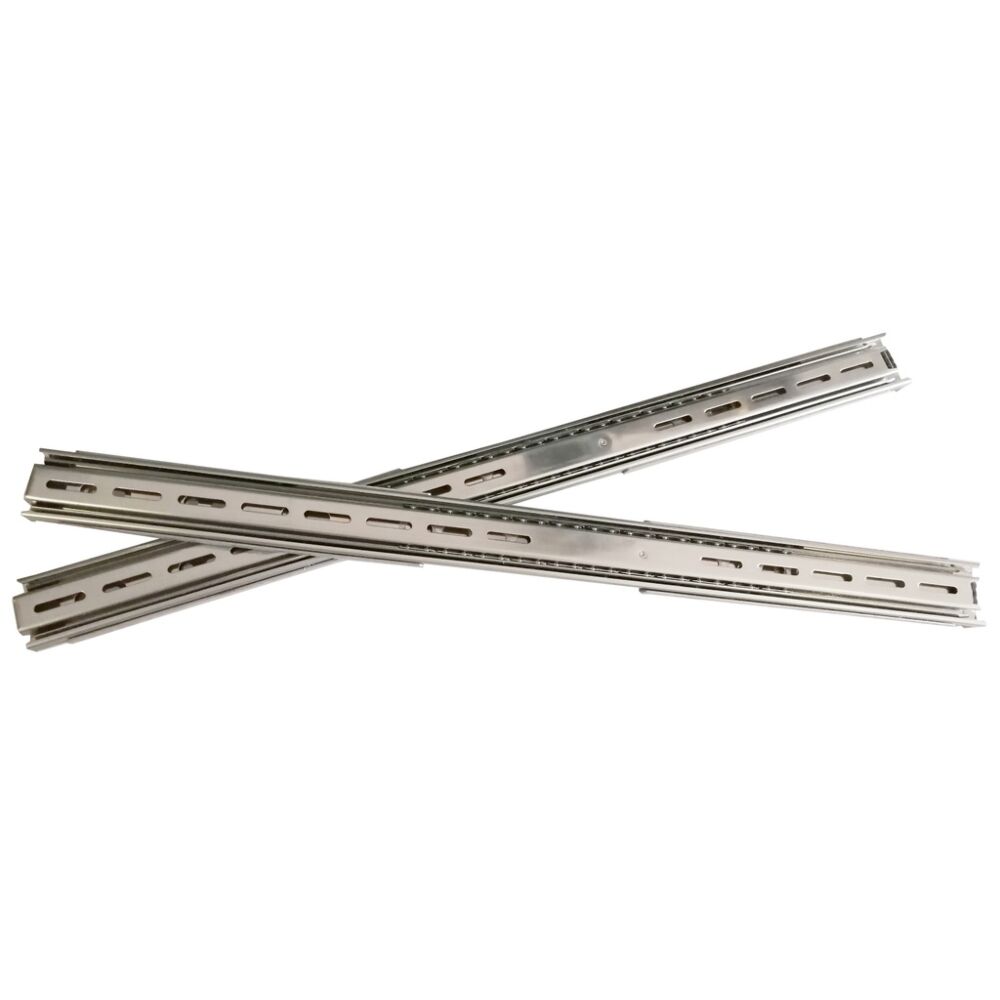

26-inch Slide Rail Kit for 1U-4U Server Case - OCR4526
Quick Overview Rail Kit Long Depth -26inch for 1U,2U,3U and 4U Empty Rackmount Case
Set of 2 slides 45mm wide and 26" or 650mm long for 19" rackmount chassis.
The slide rail has adjustable end sections which allows the slides to fit in an up to 800mm deep chassis.
| Model Number | OCR4526 |
| Product Dimension(mm) W* D | 45* 650mm |
| Support chassis height | 1U, 2U, 3U, 4U |
| Suitable depth of chassis | 650mm |
| Support cabinet depth | 800* 800mm |
|
|
| Size | 26 inch |
| Color | Zinc Plated |
| Style | Utility, Ball Bearing Slide Rails |
| Finish | Zinc Plated |
| Material | 2.0mm Work-Hardened Steel |
| Material | Steel |
| Installation Method | Screw, Side Mount |
| Item Package Quantity | 1 |
|
|
| Carton size of a single package | 730* 65* 60mm |
|
|
| Special Features | Push to Open |
| Load Rating | Up to 40kg / 88lbs |
| Includes: | 2* Sliding Rails, M3 Mounting Screws, Rack-mounting hardware |
|
|
More Information| SKU | OCR4526 |
|---|
| Estimated Shipping Weight | 2.500000 |
|---|
| Estimated Shipping Length | 75 |
|---|
| Estimated Shipping Width | 10 |
|---|
| Estimated Shipping Height | 10 |
|---|
