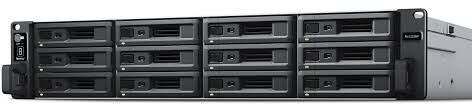

Synology Rackstation 12 Bay Expansion Unit for: SA series:SA6400; 23 series:RS2423RP+; RS2423+ .
Synology Expansion Unit RX1223RP – Reliable 12-Bay Storage Expansion
The Synology RX1223RP is a high-performance expansion unit designed to extend your Synology RackStation’s storage capacity with ease and reliability. Built for enterprise environments, it offers 12 additional drive bays, redundant power supplies, and seamless integration with Synology DSM for smooth management and data protection.
Whether you need more space for virtualization, backups, surveillance, or file storage, the RX1223RP ensures that your business can scale efficiently without sacrificing uptime or stability.
Key Features at a Glance
- 12-bay expansion unit for Synology RackStations
- Compatible with SA6400, RS2423RP+, and RS2423+
- Supports 3.5” SATA HDDs and 2.5” SATA SSDs
- Hot-swappable drives for hassle-free maintenance
- Fully managed through Synology DSM
- Redundant 550W power supply for maximum uptime
- 4 × 80mm fans for enterprise-grade cooling
- Rackmount-ready with Synology RKS-02 rail kit (optional)
How It’s Used
- Enterprise IT: Expand capacity for critical workloads without replacing infrastructure.
- Backup & Disaster Recovery: Secure extra storage for Synology’s Active Backup Suite.
- Surveillance: Store high-resolution video archives with confidence.
- Data Centers: Increase storage density while maintaining reliability and uptime.
Product Specifications (Highlights)
- Drive Bays: 12 (hot-swappable)
- Drive Types: 3.5” SATA HDD / 2.5” SATA SSD
- Expansion Port: 1 × MiniSAS-HD
- Dimensions: 88 × 430.5 × 692 mm (without ears), 88 × 482 × 724 mm (with ears)
- Weight: 13.9 kg
- Cooling: 4 × 80mm system fans
- Power Supply: 550W redundant PSU
- Operating Temp: 0°C – 35°C
- Warranty: 5 years
Your Benefits at a Glance
- Seamless capacity expansion for Synology RackStations
- Enterprise-grade reliability with redundant PSU
- Flexible drive support (HDD or SSD)
- Integrated DSM management for consistency
- 5-year warranty for long-term investment security
Extra Info & FAQs
Q: Can I use both HDDs and SSDs?
Yes, the RX1223RP supports 3.5” SATA HDDs and 2.5” SATA SSDs.
Q: How is it managed?
It is fully managed through the host Synology RackStation using DSM.
Q: Does it include redundant power?
Yes, the RX1223RP comes with a redundant 550W PSU for enterprise-grade uptime.
Why Choose the RX1223RP?
The Synology RX1223RP provides seamless scalability, high reliability, and enterprise-ready storage expansion. With hot-swappable drives, redundant PSU, and DSM integration, it ensures smooth operation and future-proof growth for your IT infrastructure.
Scale your Synology NAS today with the RX1223RP and protect your enterprise data with confidence.
Technical Specifications – Synology Expansion Unit RX1223RP
| Applied Models | SA6400, RS2423RP+, RS2423+ |
| Drive Bays | 12 |
| Drive Type | 3.5" SATA HDD, 2.5" SATA SSD |
| Hot Swappable Drives | Yes |
| RAID Management | Through Synology DSM |
| Expansion Port | 1 |
| Dimensions | 88 mm (H) × 430.5 mm (W) × 692 mm (D) |
| Dimensions (with server ears) | 88 mm (H) × 482 mm (W) × 724 mm (D) |
| Weight | 13.9 kg |
| Rack Installation Support | 4-post 19" rack (Synology Rail Kit RKS-02, sold separately) |
| Power Supply | 550 W Redundant PSU |
| AC Input Voltage | 100V – 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 93.59 W (Access), 30.73 W (HDD Hibernation) |
| BTU | 319.34 BTU/hr (Access), 104.86 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Cooling | 4 x 80 mm system fans (easy replacement) |
| Noise Level | 54.3 dB(A) |
| Certifications | UL, FCC, CE, BSMI, UKCA, EAC, VCCI, RCM, KC, BIS |
| Warranty | 5 years |
| Environmental Compliance | RoHS Compliant |
| Packaging Contents | Main Unit x1, Accessory Pack x1, AC Power Cord x2, Expansion Cable (MiniSAS-HD) x1, Quick Installation Guide x1 |
| Optional Accessories | Enterprise 3.5" SATA HDD (HAT5300 Series), Plus 3.5" SATA HDD (HAT3300 Series), Enterprise 2.5" SATA SSD (SAT5200 Series), Rail Kit RKS-02 |
| SKU | Synology RX1223RP |
|---|---|
| Estimated Shipping Weight | 5.000000 |
| Manufacturer | Synology |
| Estimated Shipping Length | 30 |
| Estimated Shipping Width | 20 |
| Estimated Shipping Height | 20 |
