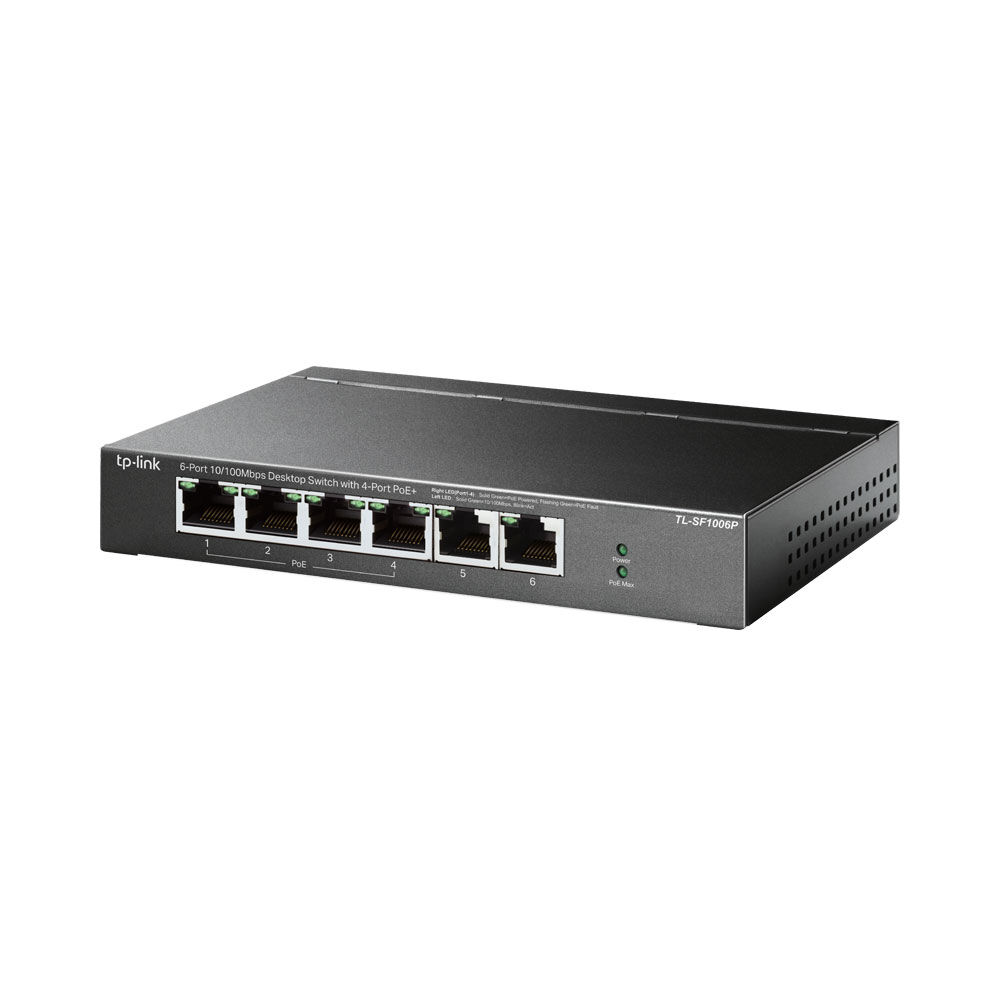

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

Interface	• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate	0.8928 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.2 Gbps
Dimensions ( W x D x H )	6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption	• 2.52 W (220 V / 50 Hz, no PD connected) • 75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation	• 8.59 BTU/h(no PD connected) • 257.11 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • PoE Auto Recovery (Ports 1-4) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
