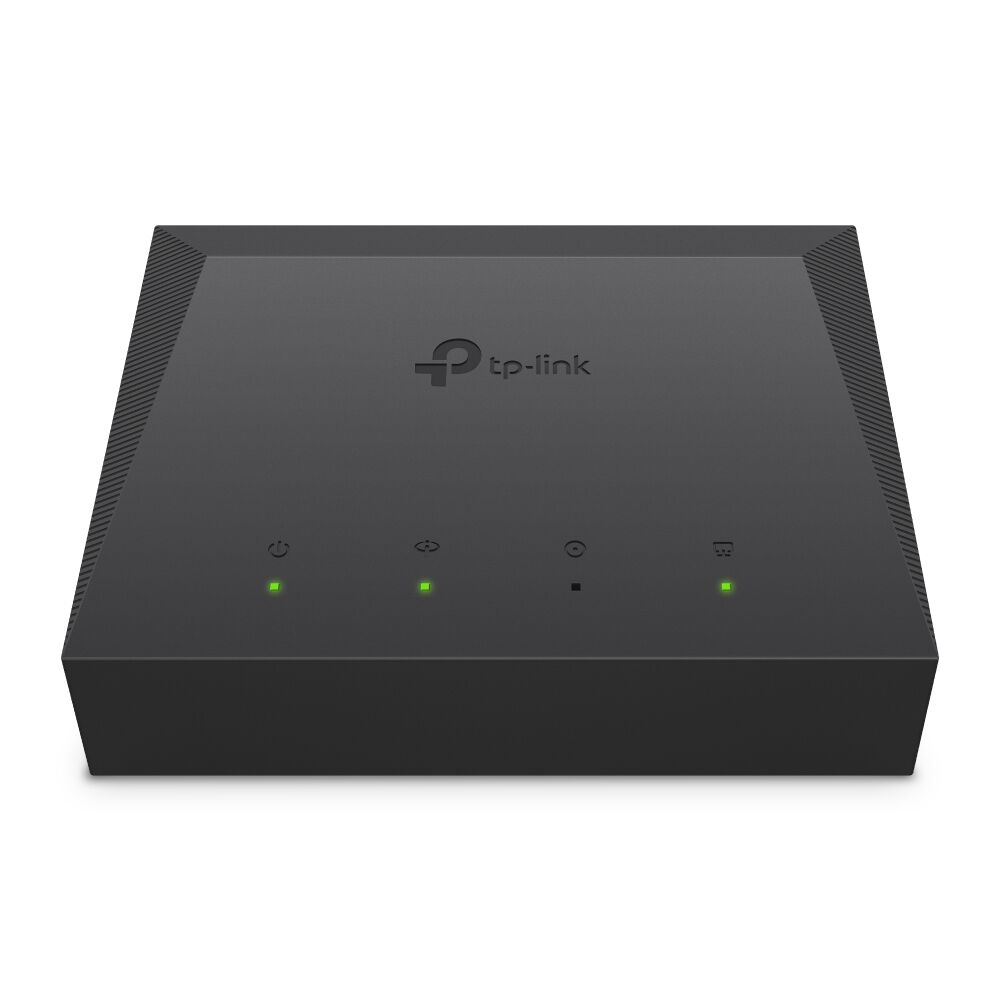

TP-Link XZ000-G6 1-Port Gigabit XPON ONU GPON / EPON Dual Mode
The TP-Link XZ000-G6 is a compact 1-Port Gigabit XPON ONU designed for fiber internet deployments. Supporting both GPON and EPON dual modes, it provides flexible compatibility for ISP and FTTH networks.
Equipped with one PON port and one Gigabit Ethernet LAN port, it delivers high-speed and stable fiber connectivity for residential and small business environments.
The device supports OMCI remote management for centralized ISP configuration and includes advanced features such as Dynamic Bandwidth Allocation, VLAN tagging, AES encryption, optical power detection, and Dying Gasp support.
With a Class B+ optical module and up to 20 km transmission distance, it is suitable for last-mile fiber rollouts and structured FTTH installations.
• Dual Mode XPON (GPON + EPON)
• 1 × PON Port + 1 × Gigabit LAN Port
• Up to 2.488 Gbps Downstream (GPON)
• OMCI Remote Management
• VLAN Tagging and Translation Modes
• AES Encryption Security
• Optical Distance up to 20 km
• Compact Desktop Design
Manufacturer: TP-Link
Model: XZ000-G6
Device Type: XPON ONU
PON Port: 1 × XPON (Class B+)
LAN Port: 1 × 10/100/1000 Mbps RJ45
Wavelength:
• Upstream: 1310 nm
• Downstream: 1490 nm
Data Rates:
• GPON Downstream: 2.488 Gbps
• GPON Upstream: 1.244 Gbps
• EPON Downstream: 1.25 Gbps
• EPON Upstream: 1.25 Gbps
Standards:
• IEEE 802.3 / 802.3u
• 802.1p / 802.1Q
• ITU-T G.984 Series
• ITU-T G.988
Security:
• AES Encryption
• VLAN-based Packet Filtering
Management:
• Web GUI
• Telnet
• OMCI
Power Supply: 9V DC / 0.6A
Optical Distance: 0–20 km
Operating Temperature: 0°C to 40°C
Certifications: CE, RoHS
Condition: New
| SKU | NET-XZ000-G6 |
|---|---|
| Estimated Shipping Weight | 1.000000 |
| Estimated Shipping Length | 10 |
| Estimated Shipping Width | 15 |
| Estimated Shipping Height | 10 |
