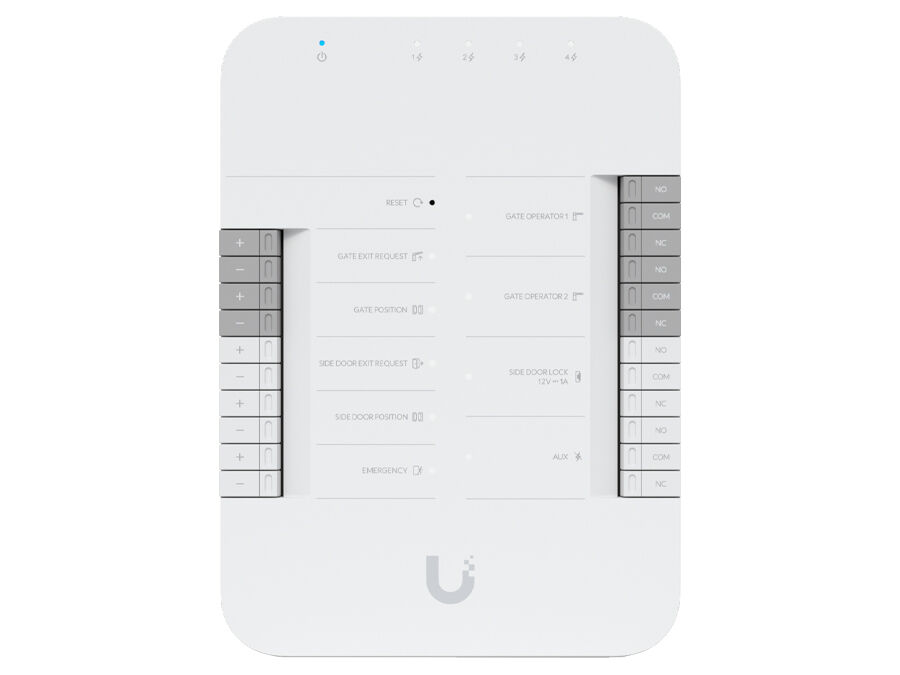

The Ubiquiti UniFi Access Gate Hub (model UA-Hub-Gate) is a dedicated gate access controller that provides secure network-connected control for vehicle gates and pedestrian doors. It supports dry relay outputs for gate operation, lock control, numerous inputs for sensors and emergency triggers, and PoE++ networking for simplified cabling. When connected to UniFi Access readers and UniFi Protect cameras with AI features, it enables automated entry based on license plate recognition and other smart access logic.
Ideal Use Cases
Smart gate access control
Secure perimeter entry automation
License plate or credential-based vehicle access
Integration with UniFi Access and Protect ecosystems
Bluetooth: None Input Terminals: 1x Gate Exit Request ; 1x Gate Position, 1x Side Door Exit, 1x Side Door Position, 1x Emergency Ethernet Ports: 5x 10/100/1000 Dry Output Relay: 2x Operator: rated 30V DC, up to 1A , 1x Aux: rated 30V DC, up to 1A Wet Output Relay: Side door lock: 12V DC, up to 1A Mounting: DIN-rail (Included) Operating Temperature: -30 to 60° C Max Power Consumption: 22W Power Input: 802.3at (PoE++)(Not Included)
