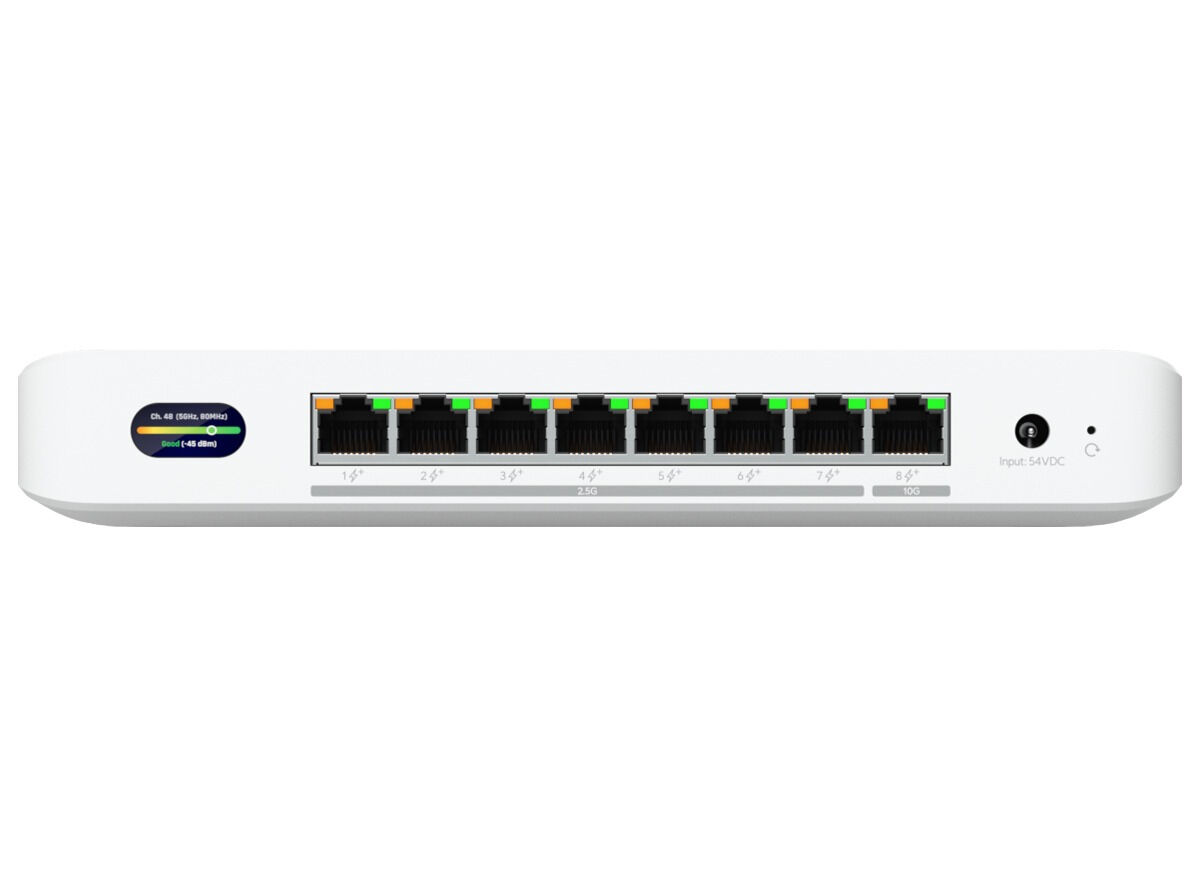

The Ubiquiti UDB-Switch is a compact multi-gigabit PoE+ switch with built-in WiFi 7 wireless bridging, designed to extend a UniFi network to locations where running a cable is impractical. Rather than requiring a wired uplink, the UDB-Switch can connect to an existing UniFi WiFi 7 access point wirelessly and provide a full downstream PoE switch for cameras, access points, IoT devices, and other PoE equipment at the remote end.
The switch side offers 7x 2.5Gbps PoE+ ports and 1x 10Gbps port, all PoE+ capable, giving enough headroom for high-bandwidth devices. The wireless uplink uses the 5GHz and 6GHz bands via UniFi WiFi Auto-Link, which automates adoption and bridging without manual configuration. STR MLO for simultaneous aggregated use of both bands is supported and will be enabled via a future firmware update.
It is important to note that the built-in WiFi radio functions exclusively as a wireless client bridge and cannot operate as a standalone access point. When connected via wired uplink instead, the UDB-Switch functions as a standard managed UniFi switch.
PoE budget depends on the power supply in use: the included 60W adapter provides 35W of total PoE output, while the optional UACC-PSU-210W raises this to 185W for deployments with multiple powered devices. Each port individually supports up to 30W (802.3at PoE+).
The UDB-Switch is managed through the UniFi Network Application (version 10.0 or later) alongside the rest of your UniFi infrastructure.
| WiFi Standard | WiFi 7 (802.11be), 5GHz and 6GHz only |
| WiFi Function | Wireless bridge/client uplink only (not an access point) |
| Spatial Streams | 4 total (2x2 5GHz, 2x2 6GHz) |
| Max Data Rate (6GHz) | 5.8Gbps (BW320) |
| Max Data Rate (5GHz) | 4.3Gbps (BW240) |
| Antenna Gain | 5GHz: 8dBi; 6GHz: 8dBi |
| Beamwidth | 360° |
| Max TX Power | 5GHz: 26dBm; 6GHz: 23dBm |
| Ethernet Ports | 7x 10/100/1000/2500 (2.5GbE); 1x 10/100/1000/10000 (10GbE) |
| PoE Output | 802.3af/at on all 8 ports (up to 30W per port) |
| PoE Budget (included PSU) | 35W total (60W adapter included) |
| PoE Budget (optional PSU) | 185W total (UACC-PSU-210W, sold separately) |
| Power Input | 54V DC / 1.1A via DC jack (adapter included) |
| Supported Voltage | 42.5-57V DC |
| Max Power Consumption | 25W |
| Hardware Button | Reset |
| Mounting | Desktop or wall mount |
| Operating System | UniFi Network Application (v10.0+) |
| Operating Temperature | -30°C to 40°C |
| Dimensions | 212.9 x 113 x 32.5mm |
| Weight | 548g |
| SKU | UDB-SWITCH |
|---|---|
