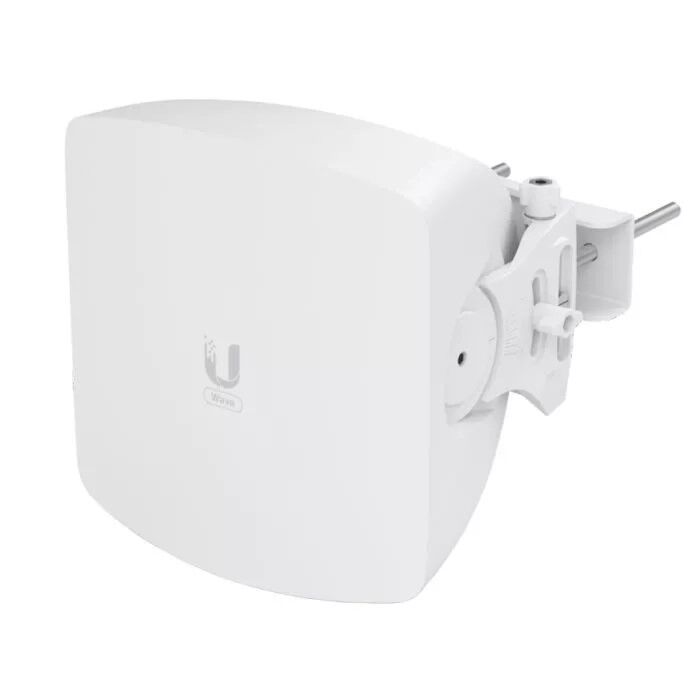

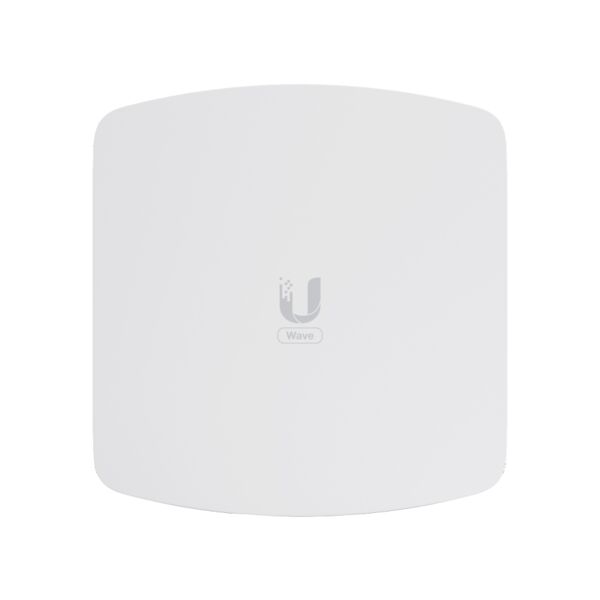

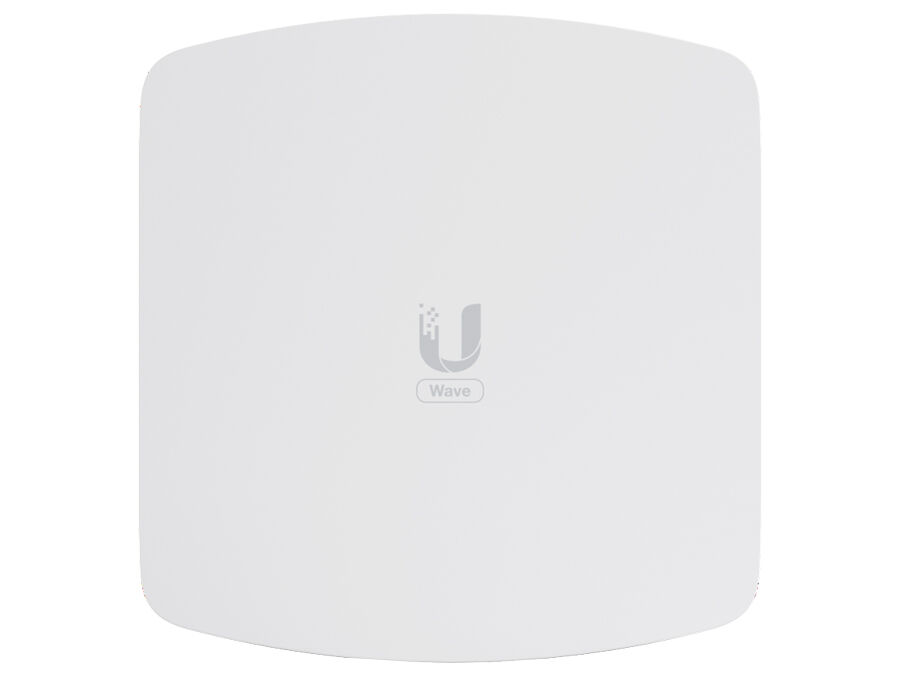

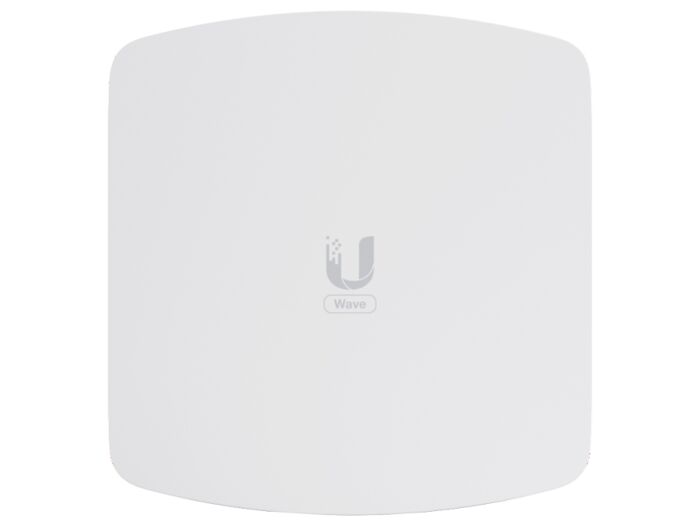

HP Ubiquiti UISP 60GHz/5GHz PtMP Wave Access Point
Quick Overview
Ubiquiti's WAVE-AP is a UISP 60GHz Point-to-MultiPoint Access Point featuring 5GHz failover, 1x 10Gbps SFP+ Port, 1x 2.5Gbps Ethernet Port and an integrated GPS antenna. Utilizing 60GHz point-to-multipoint technology, it can connect up to 15 stations with a total throughput of 5.4Gbps at distances of up to 1.3km when paired with the WAVE-PICO, 5km when paired with the WAVE-NANO, and 8km when paired with the WAVE-LR. The dedicated Bluetooth radio allows for easy set-up via the UISP network management platform.
Details
Ubiquiti's WAVE-AP is a UISP 60GHz Point-to-MultiPoint Access Point featuring 5GHz failover, 1x 10Gbps SFP+ Port, 1x 2.5Gbps Ethernet Port and an integrated GPS antenna. Utilizing 60GHz point-to-multipoint technology, it can connect up to 15 stations with a total throughput of 5.4Gbps at distances of up to 1.3km when paired with the WAVE-PICO, 5km when paired with the WAVE-NANO, and 8km when paired with the WAVE-LR.
The dedicated Bluetooth radio allows for easy set-up via the UISP network management platform.
More Information
| SKU | WAVE-AP |
|---|---|
| Manufacturer | Ubiquiti |
Technical Details
Antenna Gain: 60GHz: 24dBi ; 5.8GHz: 12dBi
Beamwidth: 60GHz/5GHz: 30°
Data Rate: 60GHz: Up to 5.4Gbps ; 5.8GHz: 800Mbps
Ethernet Ports: 1x 2.5Gbps
Hardware Button: Reset
Max. Power Consumption: 24W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None
Power Input: 48V 0.65A 2.5GbE PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 44–54V or 22–27V
USB Ports: None
Other: 1x SFP+
Dimensions: 212 x 205 x 187mm
Weight: 2.3kg
