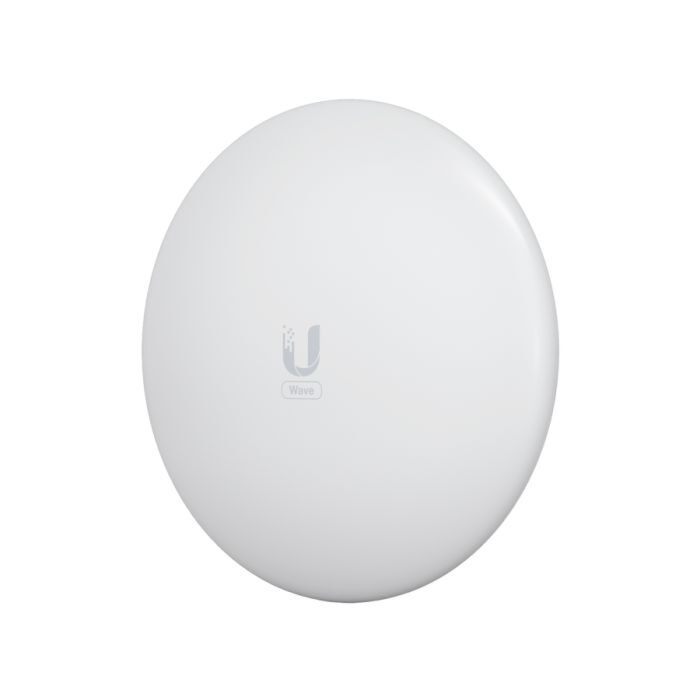

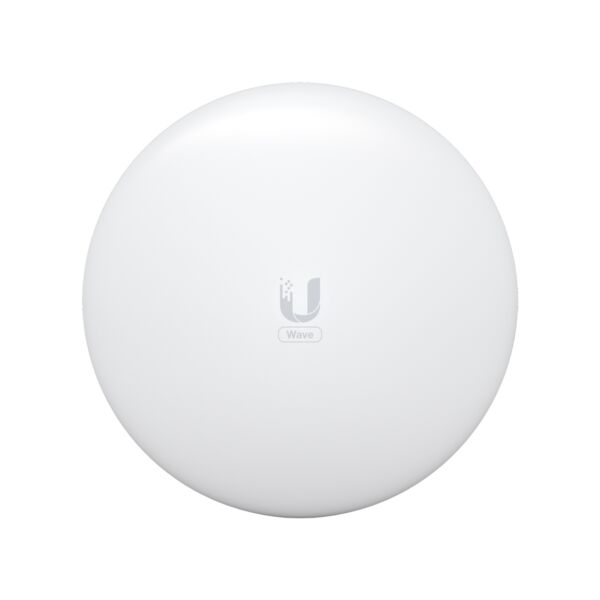

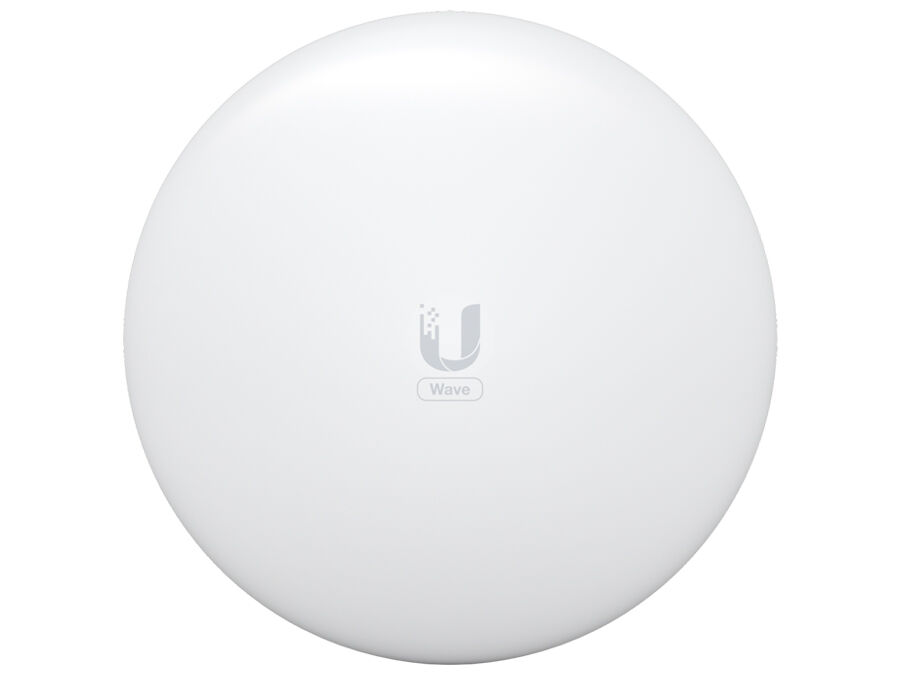

HP Ubiquiti UISP 60GHz/5GHz Wave Long Range Radio
Quick Overview
Ubiquiti's WAVE-LR is a long-range 60GHz radio system with an integrated high-gain antenna, GPS, precision mount bracket, and a 5GHz backup radio. It features Wave technology with true duplex gigabit performance PtP links up to 15 km. In PtMP mode, it can be used as a CPE and paired with theWAVE-AP(up to 8km) orWAVE-APM(6km) with a total throughput of up to 2Gbps. Also included is a built-in Bluetooth management radio for easy setup via the UISP mobile app and network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas. *Note:For PtP links, firmware v.3.2.0 or later is required.
Details
Ubiquiti's WAVE-LR is a long-range 60GHz radio system with an integrated high-gain antenna, GPS, precision mount bracket, and a 5GHz backup radio. It features Wave technology with true duplex gigabit performance PtP links up to 15 km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 8km) or WAVE-APM (6km) with a total throughput of up to 2Gbps.
Also included is a built-in Bluetooth management radio for easy setup via the UISP mobile app and network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.
*Note: For PtP links, firmware v.3.2.0 or later is required.
More Information
| SKU | WAVE-LR |
|---|---|
| Manufacturer | Ubiquiti |
Technical Details
Antenna Gain: 60GHz: 46dBi ; 5.8GHz: 22dBi Beamwidth: 60GHz: 1.1° ; 5GHz: 10° Data Rate: 60GHz: Up to 2Gbps ; 5.8GHz: 1200Mbps Ethernet Ports: 1x 10/100/1000 Hardware Button: Reset Max. Power Consumption: 18W Mounting: Pole-Mount Operating System: airOS Operating Temperature: -40°C to 60°C PoE Input: 24V or 48V Passive PoE PoE Output: None Power Input: 48V 0.65A Gigabit PoE Injector (included) Serial Interface: None SIM Slots: None Supported Voltage Range: 24V or 48V USB Ports: None |
